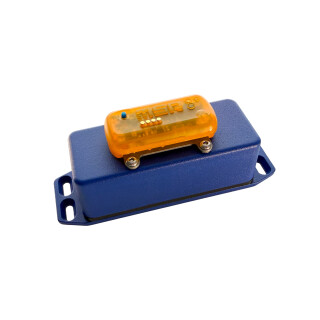

MSR175Pro Transport Data Logger for Shock Monitoring ±10/±20/±40 g • Temperature Monitoring • Signal Filtering
The MSR175Pro is a professional transport data logger engineered for quantifiable monitoring of mechanical stress during transformer and heavy-load transport. Equipped with an integrated 3-axis acceleration sensor and temperature sensor, it reliably captures high-dynamic shock impulses and environmental temperature profiles.
Selectable measuring ranges (±10 g, ±20 g, ±40 g) and adjustable sampling rates up to 4000 Hz allow precise adaptation to various transport scenarios. Multiple shock measurement modes, adjustable thresholds from 0.5 g, and intelligent filtering technologies provide detailed and dependable analysis results.
Product description:
Precise shock analysis: Captures high-dynamic acceleration events in three axes.
Signal optimization: Anti-aliasing and high-pass filters eliminate noise and static gravity components.
Smart data storage: Circular memory for up to 1,000 events plus separate protected memory for critical incidents.
Long operating time: Replaceable Li-SOCI2 battery with minimum 2-year lifetime.
Comprehensive software package: Dashboard, ReportGenerator and ShockViewer for evaluation and reporting.
The recorded data provides objective evidence of transport-related stress and supports damage analysis, insurance documentation, and quality assurance processes.
Scope of delivery: MSR175Pro data logger including basic software package.
Product safety information
Manufacturer information:
MSR Electronics GmbH
Technical data, Housing
Design
PC-style housing, encapsulated, IP65
Technical data, Dimensions & Weight
Dimensions
49 x 39 x 122 mm
Weight
approx. 180 g
Technical data, storage capacity
Measurement values
over 2,000,000 measurement values
Technical data, shock events
Memory
1,000 in ring buffer + 1,000 in additional memory
Technical data, sensors
3-axis acceleration
±10 g / ±20 g / ±40 g
Technical data, Sensors
Temperature range
-20 to +65 °C
Temperature accuracy
±0.5 °C (-10 to +65 °C)
Technical data, measurement rate
Acceleration
4 Hz to 4000 Hz
Technical data, power supply
Battery
Li-SOCI2 (SAFT LSH 14, 3.6 V, 5.8 Ah)
Technical data, interface
Connection
USB
Technical data, standards
Compliance
RoHS / WEEE
