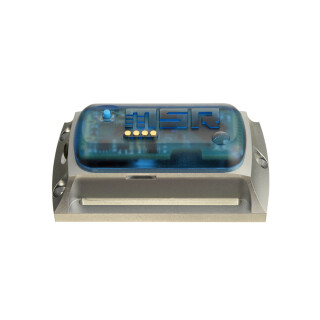

MSR165 Shock and Vibration Data Logger for Precise Long-Term Measurements (165B8A3)
The MSR165 shock and vibration data logger is a compact and versatile solution for accurately recording shocks, vibrations, and stress over long periods. It is equipped with an internal or external 3-axis accelerometer (±200 g) and offers additional sensor options for temperature, humidity, pressure, and light. The logger is ideal for applications in transport monitoring, quality control, and demanding environments such as aerospace. The MSR165 is also approved for air freight applications.
Product Description:
Shock and vibration detection: The MSR165 supports sampling rates of up to 1600 readings per second, making it perfect for capturing even subtle vibrations and shock events in high detail.
Flexible memory capacity: By default, the MSR165 stores more than 2 million data points. With an optional microSD card, this can be expanded to over 1 billion readings.
Long operating time: The built-in 1000 mAh LiPo battery enables continuous operation for up to 6 months. Alternatively, swappable Li-SOCl₂ batteries offer operation for up to 5 years. An optional MSR Power Pack can further extend the recording duration.
Powerful software tools: The MSR PC software simplifies setup and data processing. For advanced analysis, the MSR ShockViewer software provides detailed graphical evaluations of shock events.
Robust design and easy data access: The sealed PC housing reliably protects the electronics from environmental influences. Recorded data can be transferred to a computer via USB or microSD card.
Key Features of the MSR165 Shock and Vibration Data Logger:
Shock and vibration data logger with internal 3-axis accelerometer (±200 g)
Stores more than 2 million data points, expandable to over 1 billion with a microSD card
Sampling rate up to 1600/s
Adjustable measurement and storage rate from 25 Hz to 1600 Hz
Continuous data logging during vibration monitoring
Up to 6 months runtime with rechargeable LiPo battery (1000 mAh)
MSR PC software and MSR ShockViewer for advanced shock data analysis
Product Information:
The MSR165 is available with a 3-axis accelerometer that measures either ±15 g or ±200 g, depending on the model. The ±15 g version is best suited for applications involving light shocks and vibrations, such as parcel or pallet shipment. This sensor records shocks up to ±15 g at up to 1600 readings per second, ensuring high precision over time.
For applications involving high-impact shocks, the ±200 g sensor is the ideal choice. It is especially suited for transport monitoring and industrial tasks such as drop testing and impact analysis. In fields like aerospace or aviation, it is ideal for capturing sudden force impacts.
With the ability to select the desired sensor type, the MSR165 provides exceptional f
Product safety information
Manufacturer information:
MSR Electronics GmbH
Technical Data, general
Type
MSR165 Shock and Vibration Data Logger
Memory capacity
Over 2,000,000 measured values, expandable to over 1 billion with microSD card
Push button
Use the button to set markers or to start and stop measurements
Power supply
Lithium-polymer battery 1000 mAh, rechargeable via USB port, recording duration up to 6 months
Interface
USB
PC software
Free MSR PC software for configuration and data evaluation. For advanced analysis, graphical visualization of shock-mode data and automatic report generation, the MSR ShockViewer software is available from firmware version 2.00
PC requirements
Windows 7 or later, USB interface
Technical Data, operating conditions
Temperature
-20 - +65 °C
Technical Data, optimal storage conditions
Temperature
+5 °C - +45 °C
Humidity
10 - 95 % relative humidity, non-condensing
Technical Data, standards
Complies with EU Directive RoHS/WEEE
